Navigating Movement Lab
A login is required to access Movement Lab. To authenticate the login process, you must have an internet connection. An internet connection is required to download scans from the Organisations scan library. Scans stored locally on the PC can be retrieved without an internet connection. They are encrypted and can only be opened with Movement Lab software.
Here is a summary of the most commonly used icons in the menu bar of Movement Lab.
1. Open scan data
Provide the five character or more identifier (PID) that was entered at the start of the Posture Scan or any new PID that was changed after a scan. Examples: email, name, membership number, etc.
2. Close scan
Close the scan that is presently opened to avoid third parties seeing the scan.
3. Save scan
Save the current scan .pqdat file to the desktop. For security reasons, this is not recommended.
4. Animated feedback
Show the series of animated feedback screens with 3D images and measures for the scan that is open.
5. Summary report
Generate a six-page summary report in PDF form, with the option to draw, save, print and share via email.
| Icon | Function |
|---|---|
| A | Save the report |
| B | Print the report to default printer |
| C | Email the report with comments |
| D | Draw and erase on the report |
| E | Toggle between the pages of summary report |
| F | Show the main content of the report on the screen |
| G | Stretch the report horizontally |
| H | Show full report on the screen |
| I | Zoom in and zoom out |

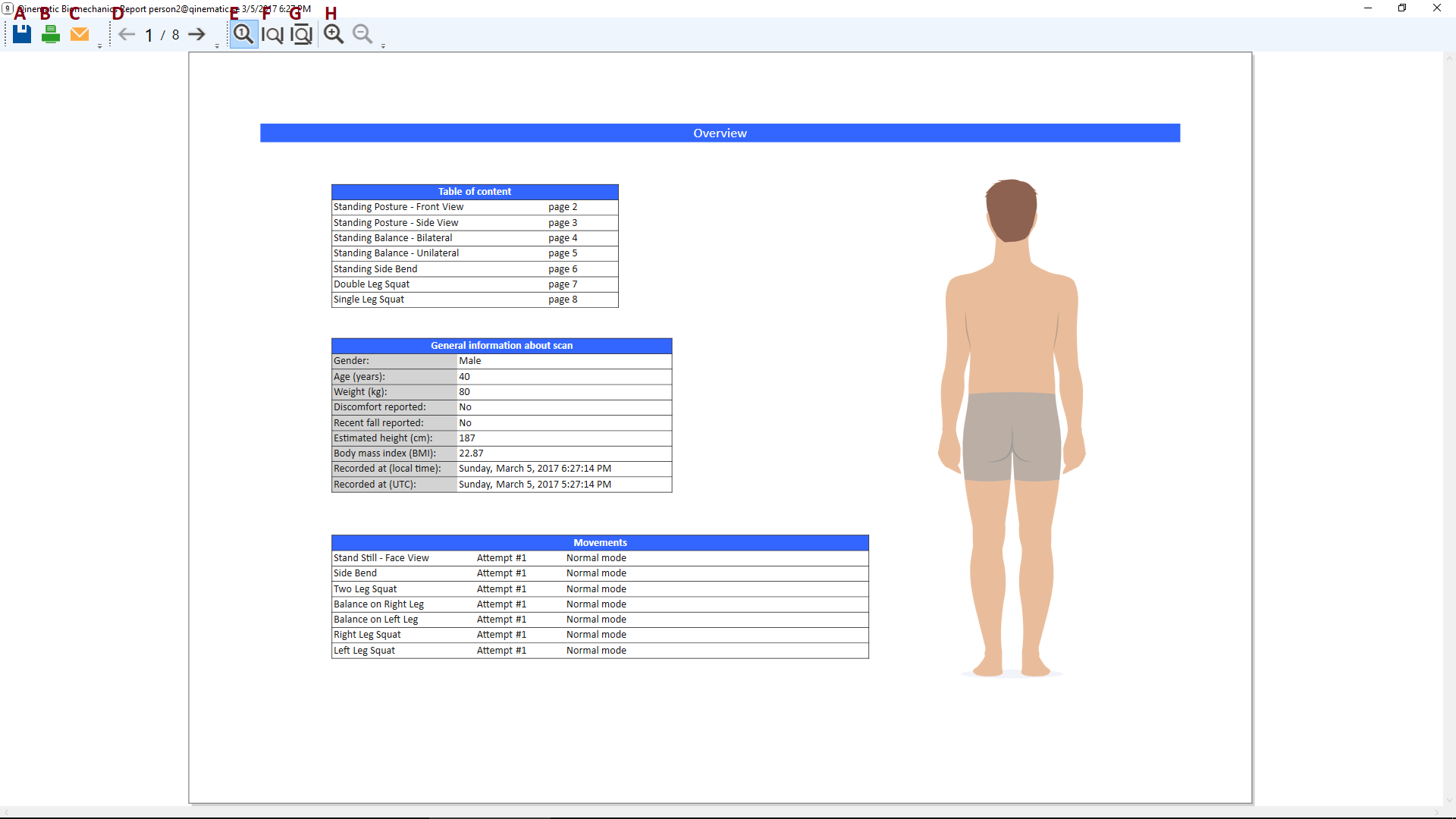

6. Biomechanics Report
Generate an eight-page summary report in PDF form, with the option to save, print and share via email.
| Icon | Function |
|---|---|
| A | Save the report |
| B | Print the report to default printer |
| C | Email the report with comments |
| D | Toggle between the pages of summary report |
| E | Show the main content of the report on the screen |
| F | Stretch the report horizontally |
| G | Show full report on the screen |
| H | Zoom in and zoom out |
7. Open report on Note
Create link to an online version of the Summary report and see the scan in the web browser.
8. Export measurement data
Export tab separated Biomechanics Report measurement data for an individual scan to the local computer in .txt format.
9. Export Tracking Point Data
Export tab separated tracking point data from the regions of interest (ROI) of each movement to the local computer in .txt format.
Choose a language.
10. Language
Manage the settings of the Movement Lab system.
11. Settings
| Program setting | Available Options | Description |
|---|---|---|
| Logo for Summary report | Select a photo (.png, .jpg, .gif) from the personal computer. | Upload an Organisation’s logo to be displayed on the Summary report. |
| Provider’s contact information for Summary report | Fill in by Administrator or Provider | Submit the Organisation’s contact details to display on the summary report, as required by law. Usually this contact includes a standard address, email and phone number for contacting the Provider. |
| Spatial smoothing of 3D body surface | □ None □ Normal □ Aggressive |
Adjust the image quality for 3D video played in Posture Scan and/or Movement Lab. |
| Temporal averaging of 3D body surface | □ None □ Normal □ Aggressive |
Adjust the image quality for 3D video played in Posture Scan and/or Movement Lab. |
| Color of 3D virtual wall | □ None □ Grey □ Blue |
Adjust the color of the background seen in Posture Scan and/or Movement Lab. |
| Color of floor in 3D viewpoint | □ None □ Grey □ Blue |
Adjust the color of the floor seen in Posture Scan and/or Movement Lab. |
| Automatically re-open most recent scan in Movement Lab | Yes No |
To allow recently conducted scan for the organinsation to be automatically opened on Movement Lab |
Update the Movement Lab software. It is advised to update the software on a regular basis. A notification bar appears at the top of the screen when an update is available.
12. Update software
Information about the current version of software, the name of the cloud library and the names of third party software associated with Qinematic Posture Scan software.
13. Movement Lab software information
View the Authenticated Provider that is logged in. The drop-down button shows the ID of the provider and organisation that the Provider belongs to, as well as sign out.
14. User details
3D Video Controls
The 3D video can be changed in various ways to see the depth cloud, change perspective, zoom in/out, and to see the XYZ coordinates.
