Clothing

What is the perfect clothing?


Perfect clothing for men and women. The figure shows a perfect mens and womens clothing for the scan. However, equally perfect are all kind of tights (upper and lower body).

Perfect clothing for men and women. The figure shows a perfect mens and womens clothing for the scan. However, equally perfect are all kind of tights (upper and lower body).



Posture Scan records the surface of the body. Measures are most accurate when wearing tight fitting cotton clothing, underwear, bare skin or tight fitting non-reflective training clothing.

To avoid disappointment and bad scanning data, we advise providers to inform the end users of the clothing requirements well ahead of time.


How to prepare clothing for a scan?


Example of preparation of clothes. All loose clothing should be fixed with clamps on the backside of the body.

Example of preparation of clothes. All loose clothing should be fixed with clamps on the backside of the body.



Which clothes should be AVOIDED?
  • Stretch denim

  • Polyester tissue

  • Full suits

  • Baggy clothing (e.g., jacket, loose trousers/basketball shorts

  • Reflective and loose jewellery

  • Hat

  • Scarf

  • Silver lined socks

This person is wearing stretch denim trousers that reflect the infrared light from the sensor, so he must remove his trousers to be scanned. He should also remove his hat and his loose fitting jacket so the outline of his body is obvious.

This person is wearing stretch denim trousers that reflect the infrared light from the sensor, so he must remove his trousers to be scanned. He should also remove his hat and his loose fitting jacket so the outline of his body is obvious.

Occasionally, very dark hair or hair with gel will be rejected by the sensor.


Examples of clothing recorded in scans

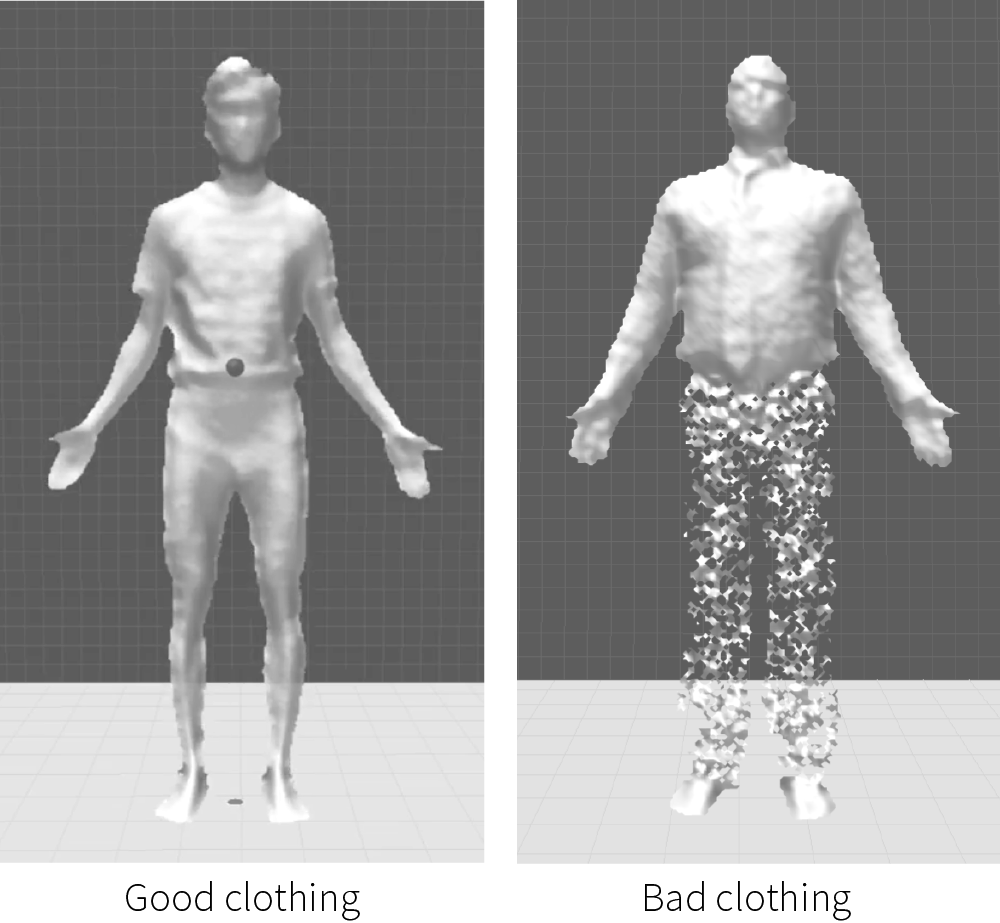

Left picture: Example of good clothing (tight and short underwear and a t-shirt).  Right picture: Example of bad clothing (pants with reflective tissue, cuffs are not rolled up, tie is still hanging open).

Left picture: Example of good clothing (tight and short underwear and a t-shirt).

Right picture: Example of bad clothing (pants with reflective tissue, cuffs are not rolled up, tie is still hanging open).


For accurate measures, the sensor needs to see the true outline of the body. Clothing made from unsuitable material for IR scans will be detected by the intelligent software just prior to starting the recording. After the registration process the person is asked to stand in the green box, and the clothing is analysed for suitability. If the system agrees that the signal is good, then the scan process will begin. If the signal is poor, then the person will need to remove the item of clothing that is highlighted in red on the screen, change clothes or abandon the scan.

Poor data into the system means poor information out of the system, and Qinematic believes in good data only - so we are quite strict about the signal quality.
